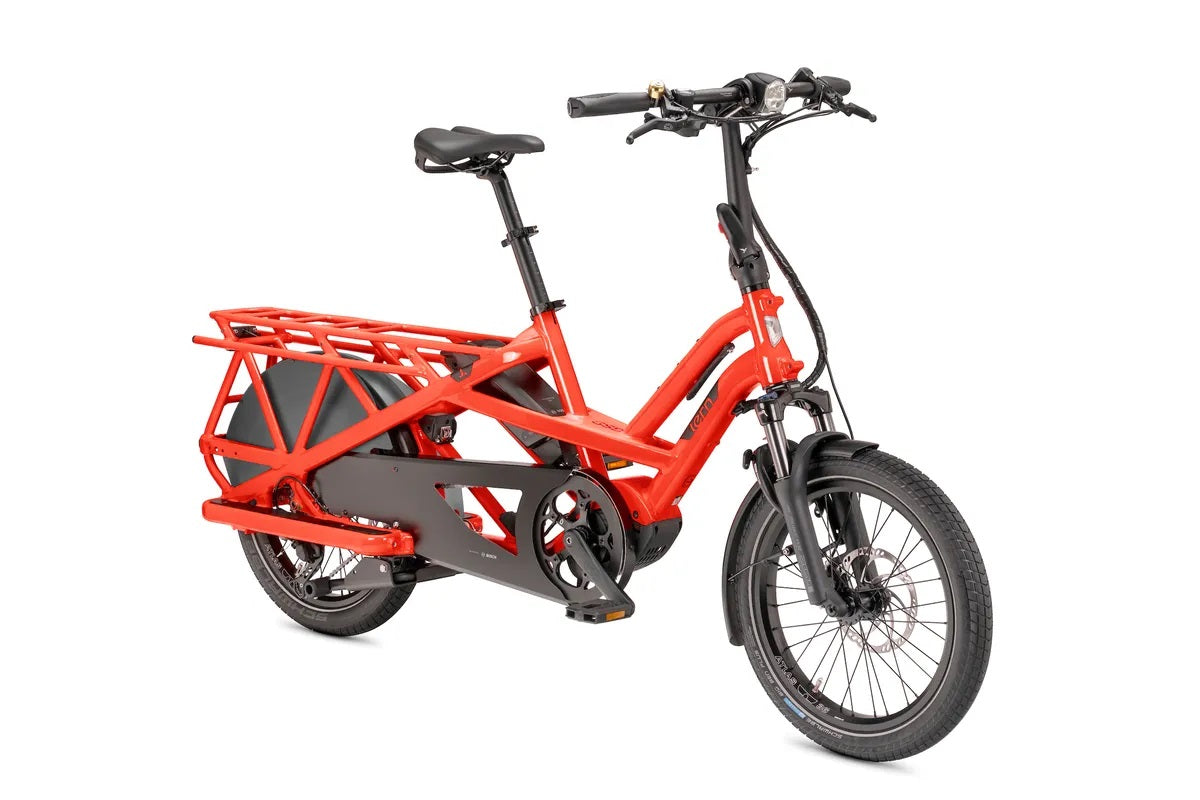

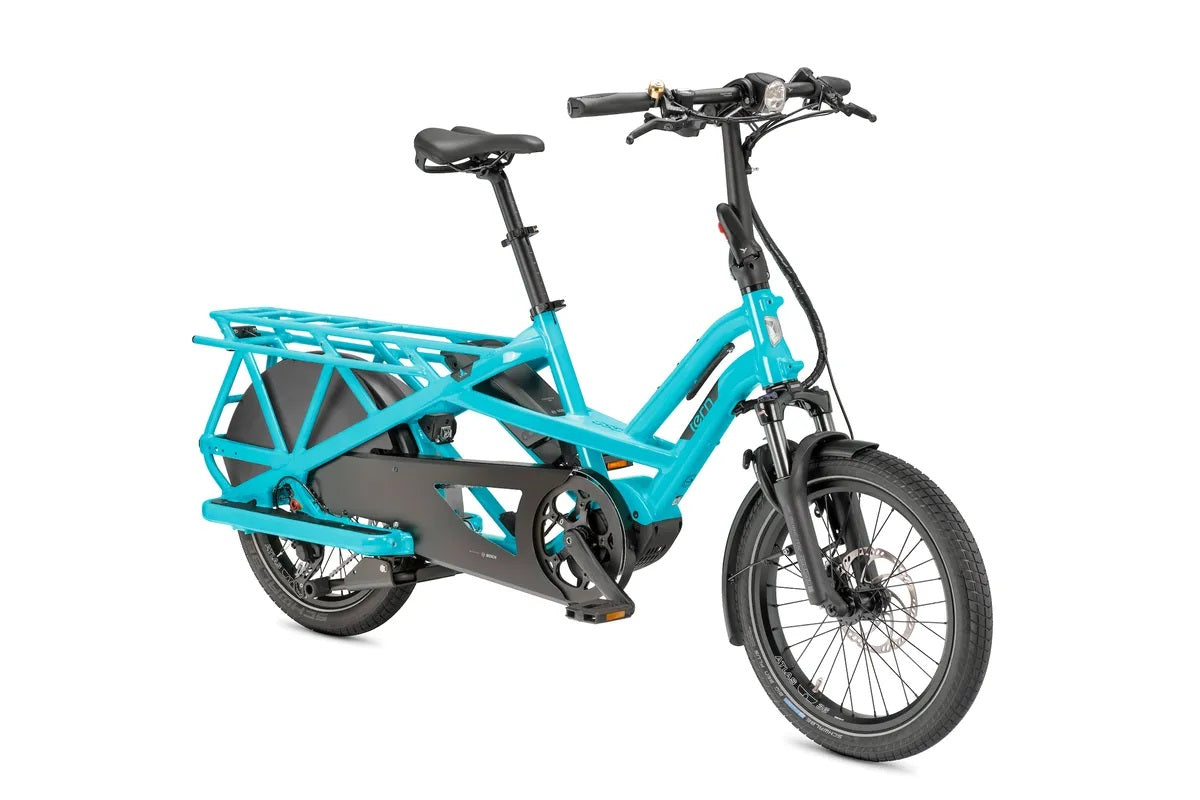

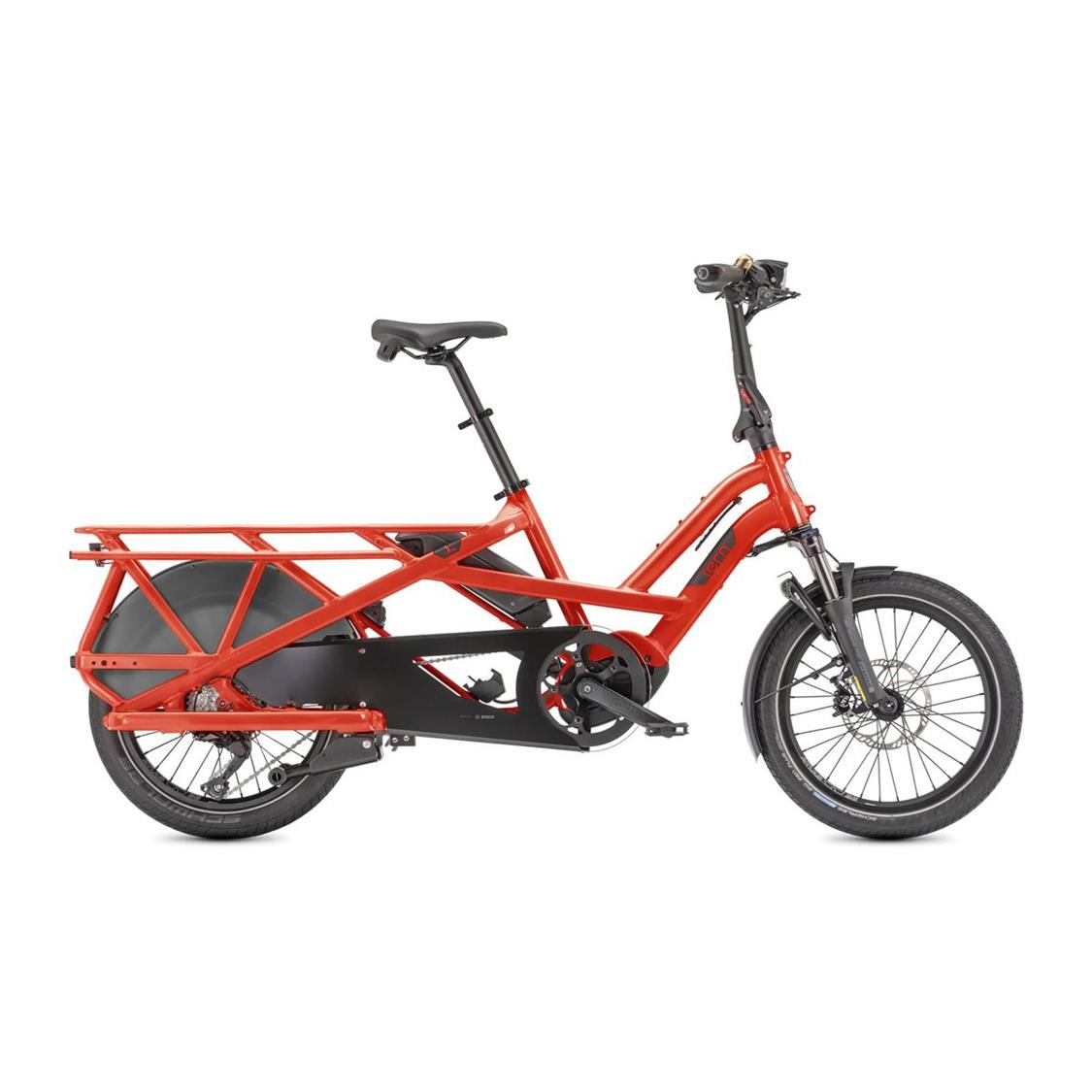

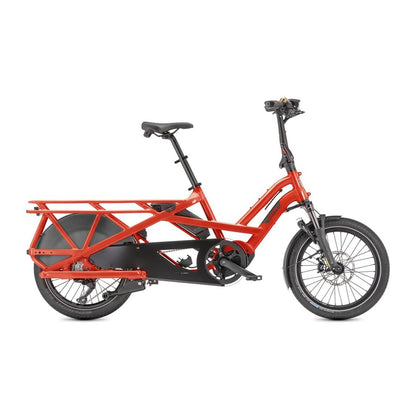

Tern GSD S10 20" E-Cargo Bike 400Wh Battery

$9,600.00 NZD

Sale Sold out

Taxes included.

Color: Tabasco

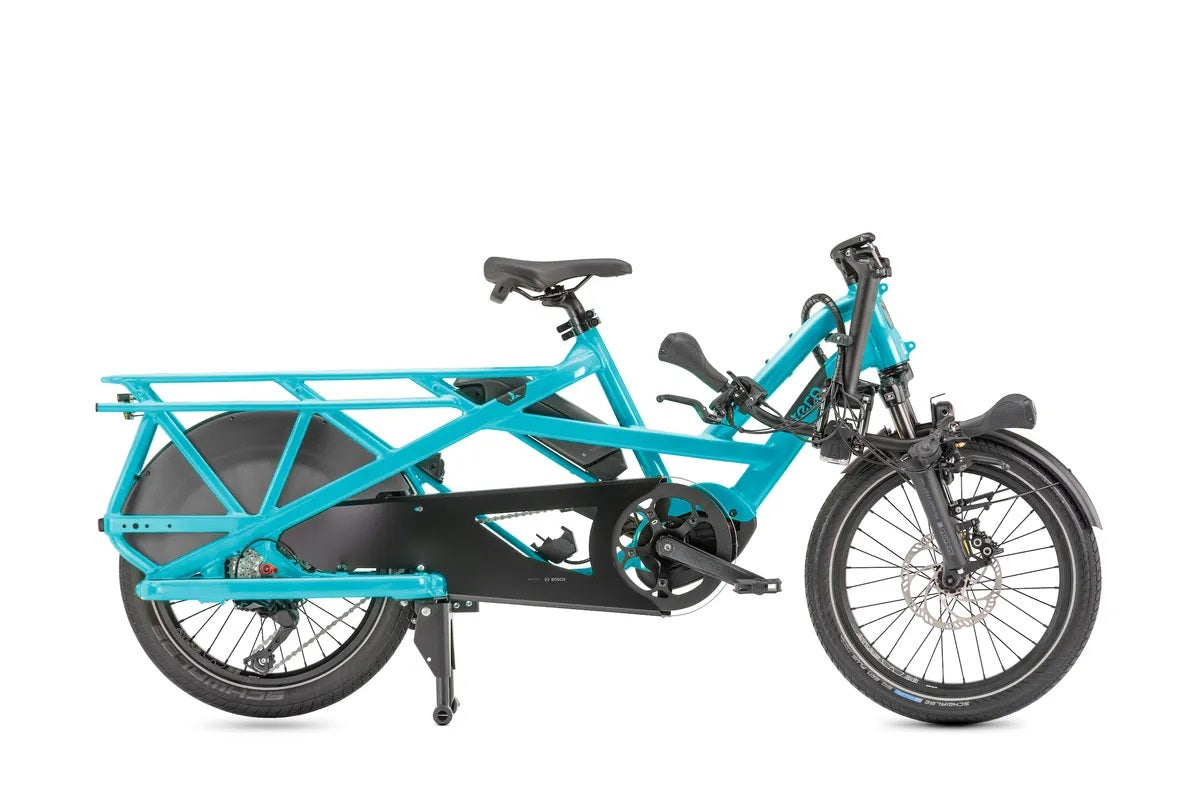

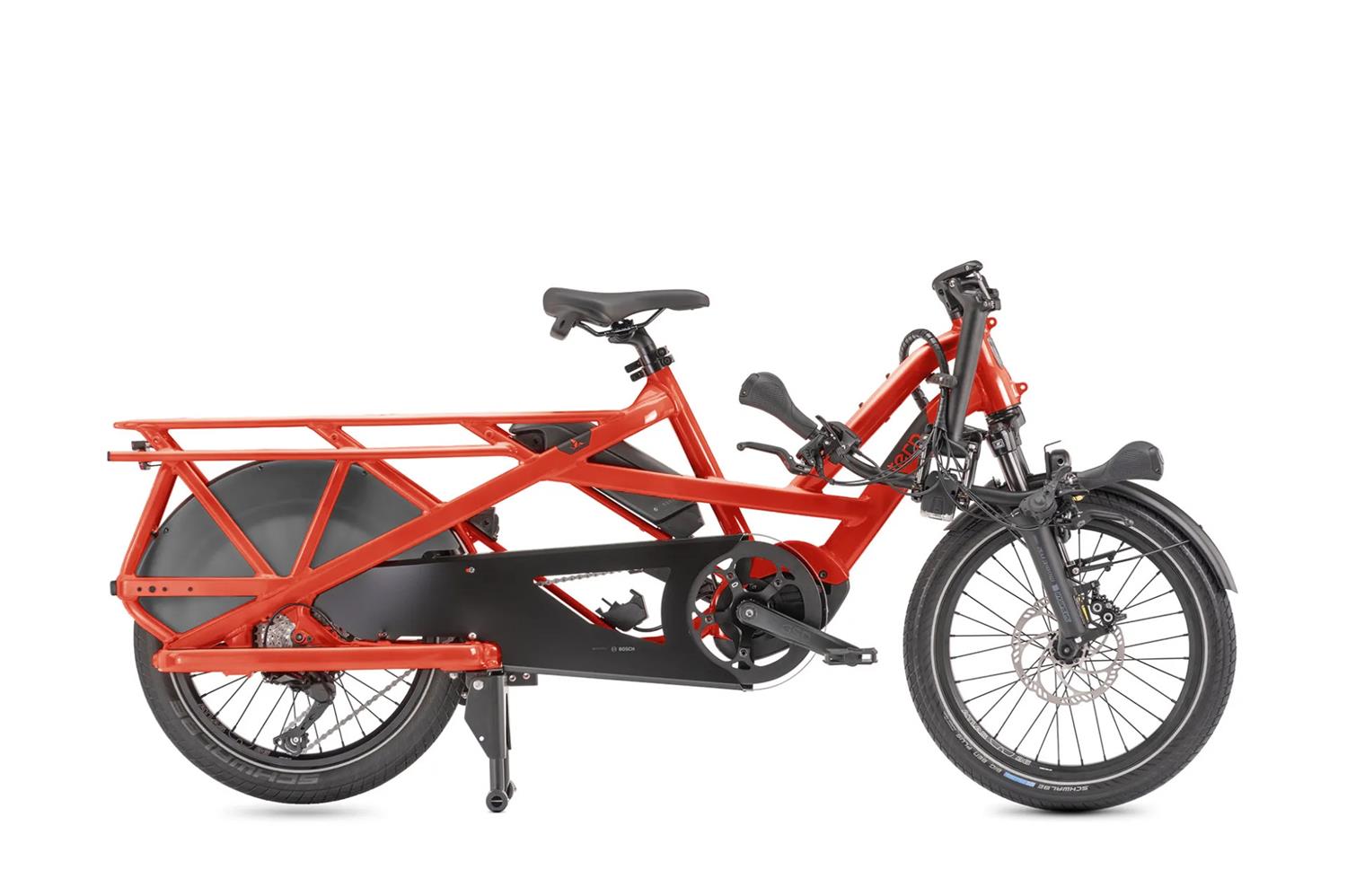

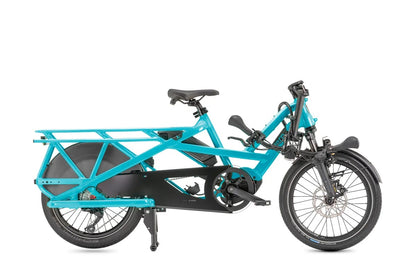

Still Small. Even More Useful. - With a 200 kg (440 lb) Maximum Gross Vehicle Weight, the GSD is ready to replace your car. It’ll let you carry two kids plus groceries, or a whole lot of cargo—but it’s the same length as a regular bike. Built-in dual-battery technology lets you ride all day, while space-saving features like FlatFold and Vertical Parking make the GSD incredibly easy to own and use.

Bosch® Cargo Line Motor provides up to 85 Nm of torque and 400% support
Bosch dual-battery system (400/900 Wh) for a range of up to 195 km (Extra battery sold separately by Bosch NZ)
Shimano® Deore 1 × 10-speed hub for smooth, efficient shifting
Super tough Atlas Lockstand™ auto-locks when engaged—just press a button on the handlebars to unlock
Heavy-duty frame-integrated rear rack and integrated lower decks
Powerful and responsive Magura® MT5 eSTOP 4-piston hydraulic disc brakes
Always-on RearStop™ Brake Light helps you safely signal stops
Upgraded Atlas Wheels™ with custom CNC machined hubs for extra strength and durability

frame sizes	One size
rear derailleur	Shimano Deore Shadow+
max rider weight	120 kg
stem	Tern Andros, adjustable, forged construction, patented technology
seatpost	Tern Telescope, 34.9/30.9 mm, 2014-AL
seatpost clamp	Tern Collar, 6061-AL, 2pc
shifter cable & housing	Jagwire LEX-SL, slick treatment, alloy ferrules

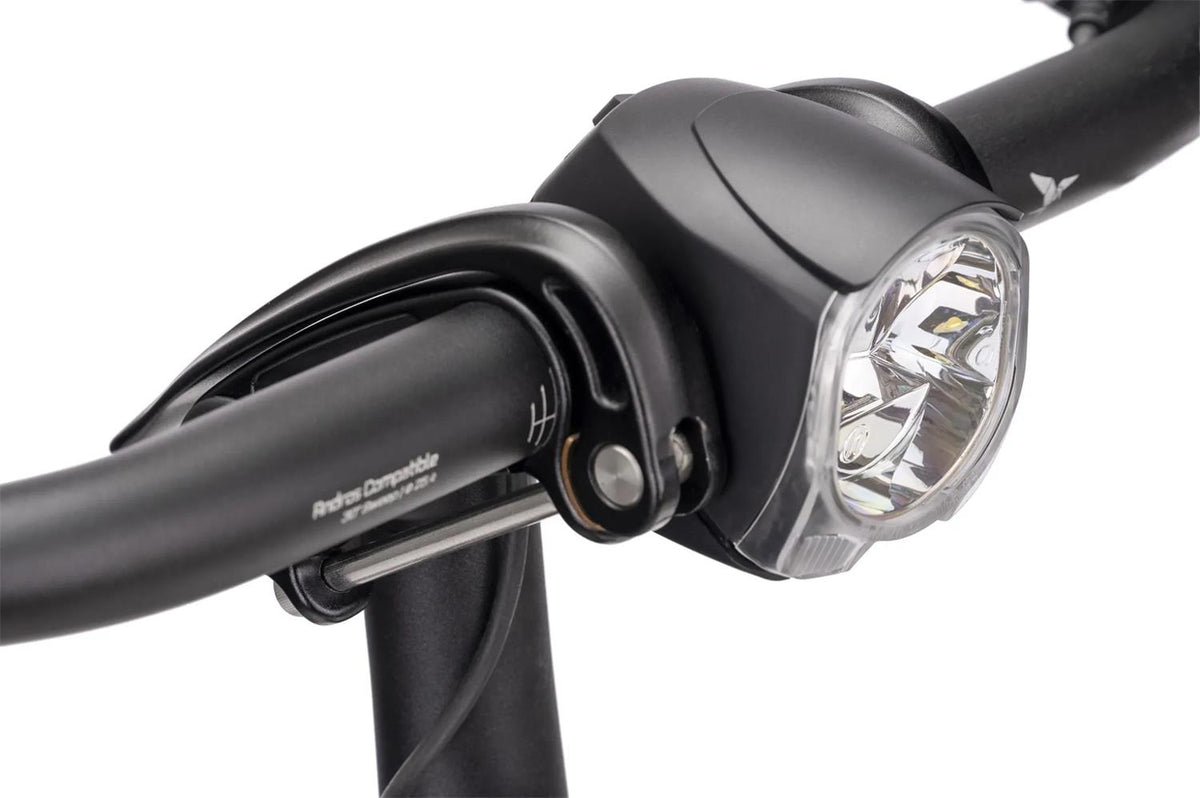

front light	Tern Valo Direct, 190 lumens
luggage socket	Combo Mount
bottom bracket	Motor integrated
handlebar	Tern Sweep, 6061-AL, Tern Andros adapted
grips/bar tape	Ergon
chainguard	Tern Custom, full chain cover
distance (saddle to pedal)	69 - 105 cm
suggested rider height	150 - 195 cm
max gross vehicle weight	200 kg
handlepost	Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 290 mm
headset	Tern Flux Pro Taper, 1.5", angular contact bearings, Physis integrated

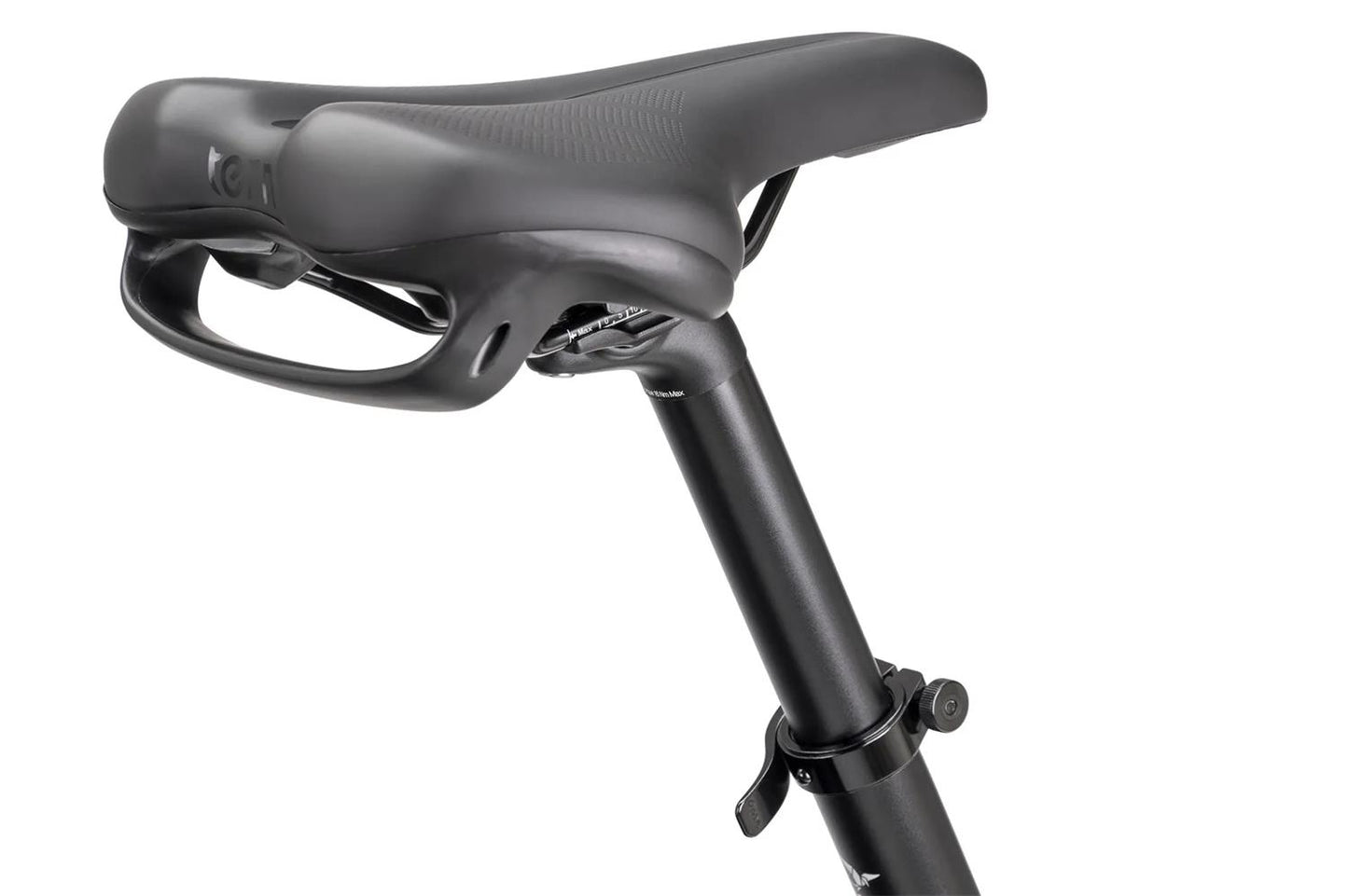

saddle	Tern GSD by Velo, with rear handle
brake levers	Magura MT5 e-stop, hydraulic, with brake sensor
front hub	Tern Atlas, Boost Thru-Axle, Cargo-optimized design, sealed cartridge bearing
rear hub	Tern Atlas, Boost Thru-Axle, Syntace X-12 standard, Cargo-optimized design
spokes and nipples	Stainless steel, 13G
rims	Tern Atlas, ultra wide 36 mm, dual reinforced joint
shifter(s)	Shimano Deore, 1 x 10 spd
crankset	Tern GSD custom, forged 6061-AL DH crankarm
cassette/freewheel	Shimano 11-36T, 10 spd
chain	10 spd, DHT for eBike, GST corrosion resistant coating
pedals	Urban with non-slip surface, sealed bearings
motor	Bosch Cargo Line, 400% Assist, 85 Nm Torque, max speed 32km/h
battery	Bosch Dual Battery system, 400 Wh/900 Wh (extra 500Wh battery not included)
charger	240V, 4A (AU/NZ)
bell	Pitch Plus, brass
kickstand	Atlas Lockstand, w/ remote unlock, patented technology
rear light	RearStop Brake Light, Always on brake light
fenders	Integrated Wheel Guard, AL6061, w/ Side Skirt
accessory	ABUS, keyed-alike with Bosch battery
speeds	1 x 10
weight	33.58 kg
gear inches	2.08 - 7.91 m
folding size	176 × 40.5 × 83 cm
distance (seatpost to handlebar)	49 - 59 cm
frame	Tern GSD, 6061-AL, patented MultiTruss design, EFBE Tri-Test approved for 200 kg
fork	Suntour custom for Tern, 1.5" tapered Chromoly steerer, 32 mm stanchions, Thru-axle, 70 mm travel, EFBE approved for 200 kg

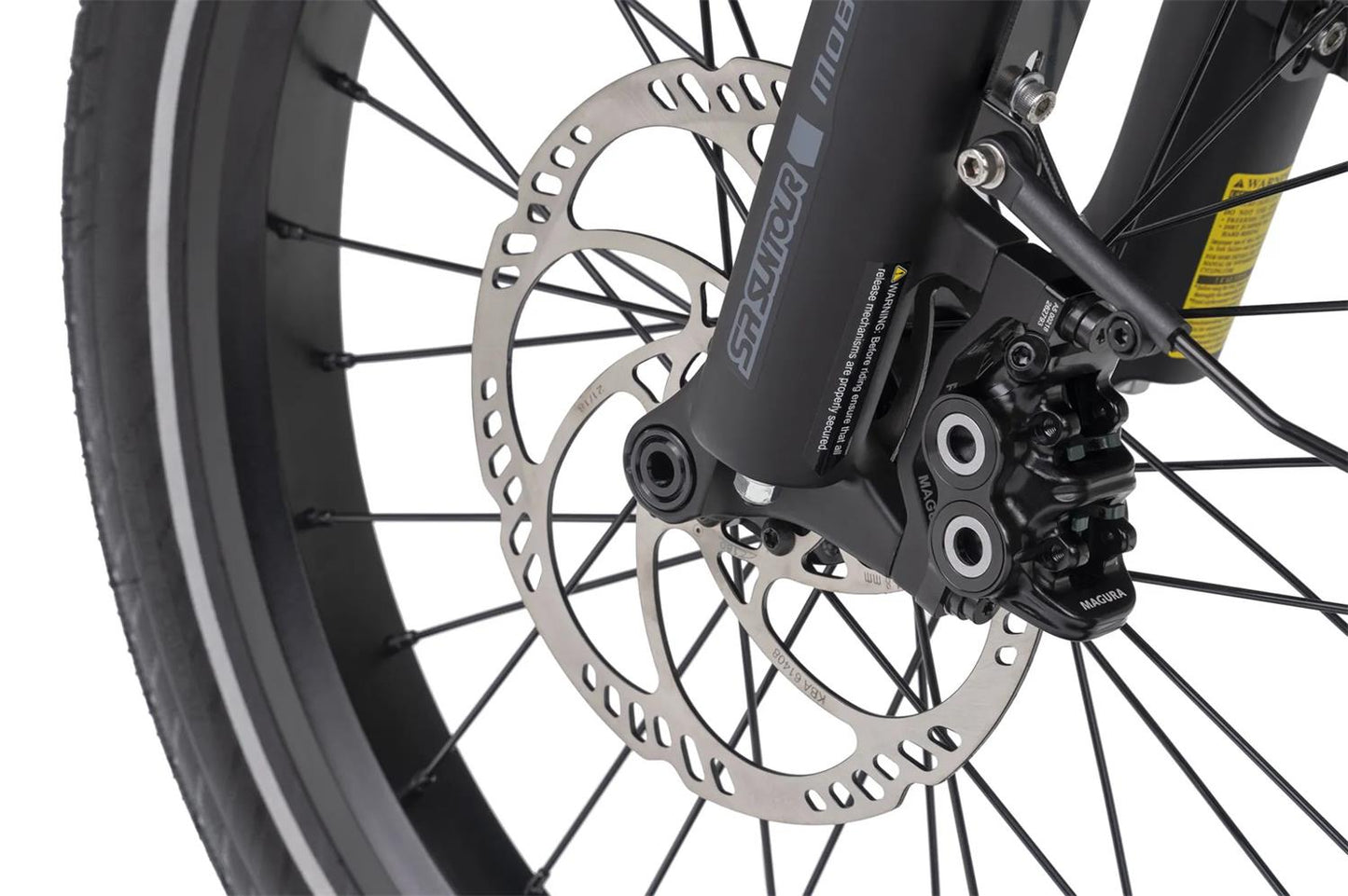

brakes (front + rear)	Magura MT5, 4-piston hydraulic disc, 180 mm rotor, Sport pads

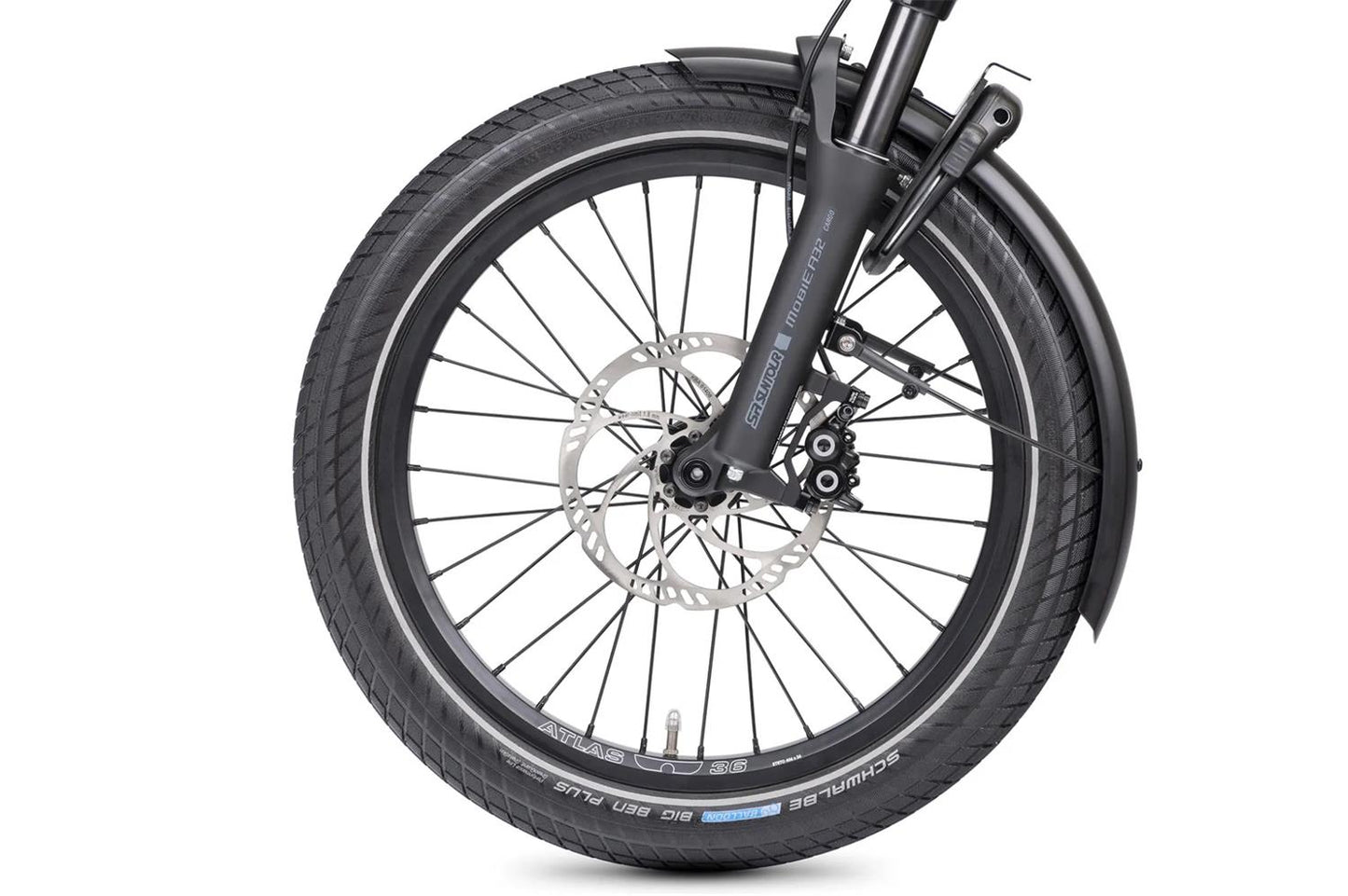

tyres	F - Schwalbe Big Ben Plus, 55-406, Green Guard puncture protection, Reflex / R - Tern x Schwalbe Super Moto-X, 62-406, Green Guard puncture protection, Reflex
display	Bosch Purion, 4 mode selectable, walk assist
range	400 Wh - 42-85 km / 900 Wh - 97-195 km
rack(s)	Frame integrated, heavy duty design. Max load weight - 100 kg
