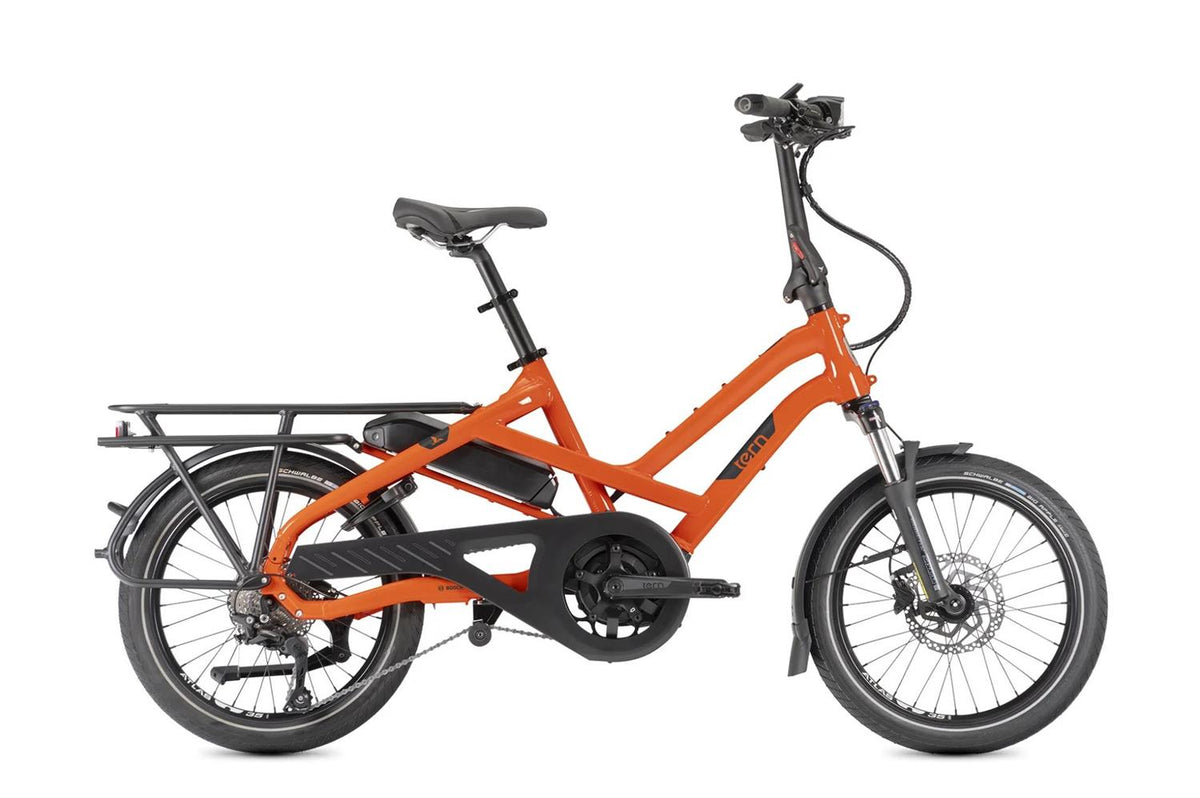

Tern E-Bike HSD Gen2 P10 E-Cargo Bike 545Wh Battery
Tern E-Bike HSD Gen2 P10 E-Cargo Bike 545Wh Battery
Regular price
$8,390.00 NZD
Regular price
Sale price
$8,390.00 NZD
Taxes included.
Quantity
Couldn't load pickup availability
Mighty But Mini
The HSD is the right amount of bike if you want the benefits of a cargo bike but still fancy the convenience and handling of something less bulky. Lean and nimble, the HSD is shorter than a regular bike yet capable of hauling a max gross vehicle weight (MGVW) of 180 kg (397 lb). And thanks to best-in-class components, rigorous lab testing, and UL 2849 certification, you can count on having a safe, reliable bike.
What makes it a P10?
- Bosch Performance Line motor with Bosch Smart System provides up to 75 Nm of torque and increases your pedaling power by up to 340%
- Detachable and easy-to-understand Intuvia 100 display
- 1x10-speed Shimano Deore groupset with trigger shifter
HSD Highlights:
- Control all Smart System functions at your fingertips via the Bosch eBike Flow App: keep your e-bike system up-to-date with over-the-air updates, activate the eBike Lock, customize riding modes, view bike information, connect to dealers, and more!
- Bosch PowerPack 545 battery provides long range of up to 121 km
- Cargo and passenger-ready: large rear rack capacity of 80 kg means you can carry one infant to a medium-sized adult passenger, or lots of cargo
- Fits riders 150 - 195 cm with an easily-adjustable cockpit
- Tested for safety and reliability: frame and fork are EFBE-tested up to the 180 kg Maximum Gross Vehicle Weight
Includes:
- Rack
- Fenders
| SPECIFICATIONS | |
| frame sizes | One size |
| rear derailleur | Shimano Deore Shadow+ |
| max rider weight | 120 kg |
| stem | Tern Andros, adjustable, forged construction, patented technology |

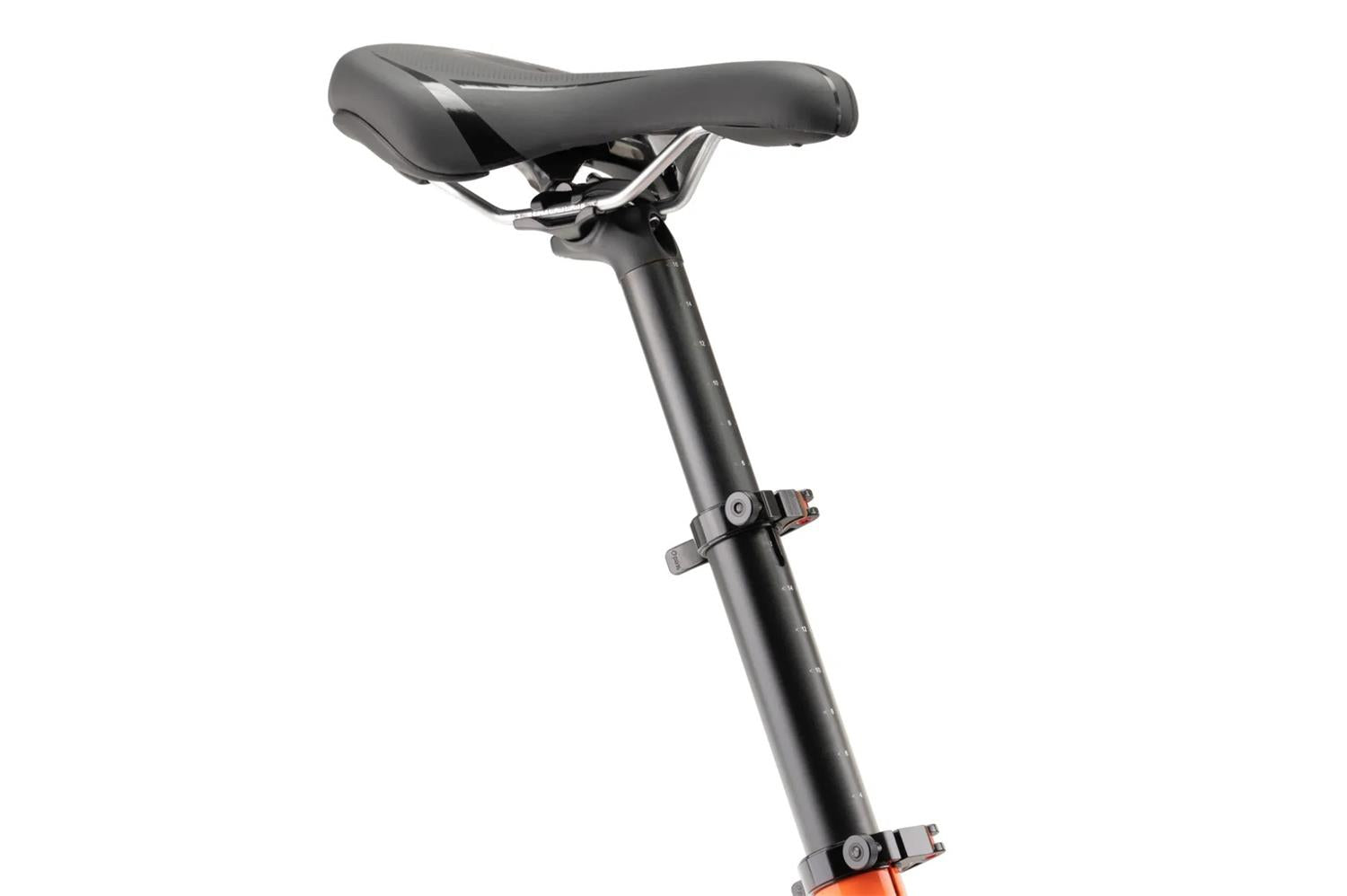

| seatpost | Tern Telescope, 34.9/30.9 mm, 2014-AL |
| kickstand | URSUS, rear mount |
| front light | Tern Valo Direct, 190 lumens |
| pedals | Urban with non-slip surface |
| luggage socket | Combo Mount |
| fenders | SKS, stainless hardware |
| bottom bracket | Motor integrated |

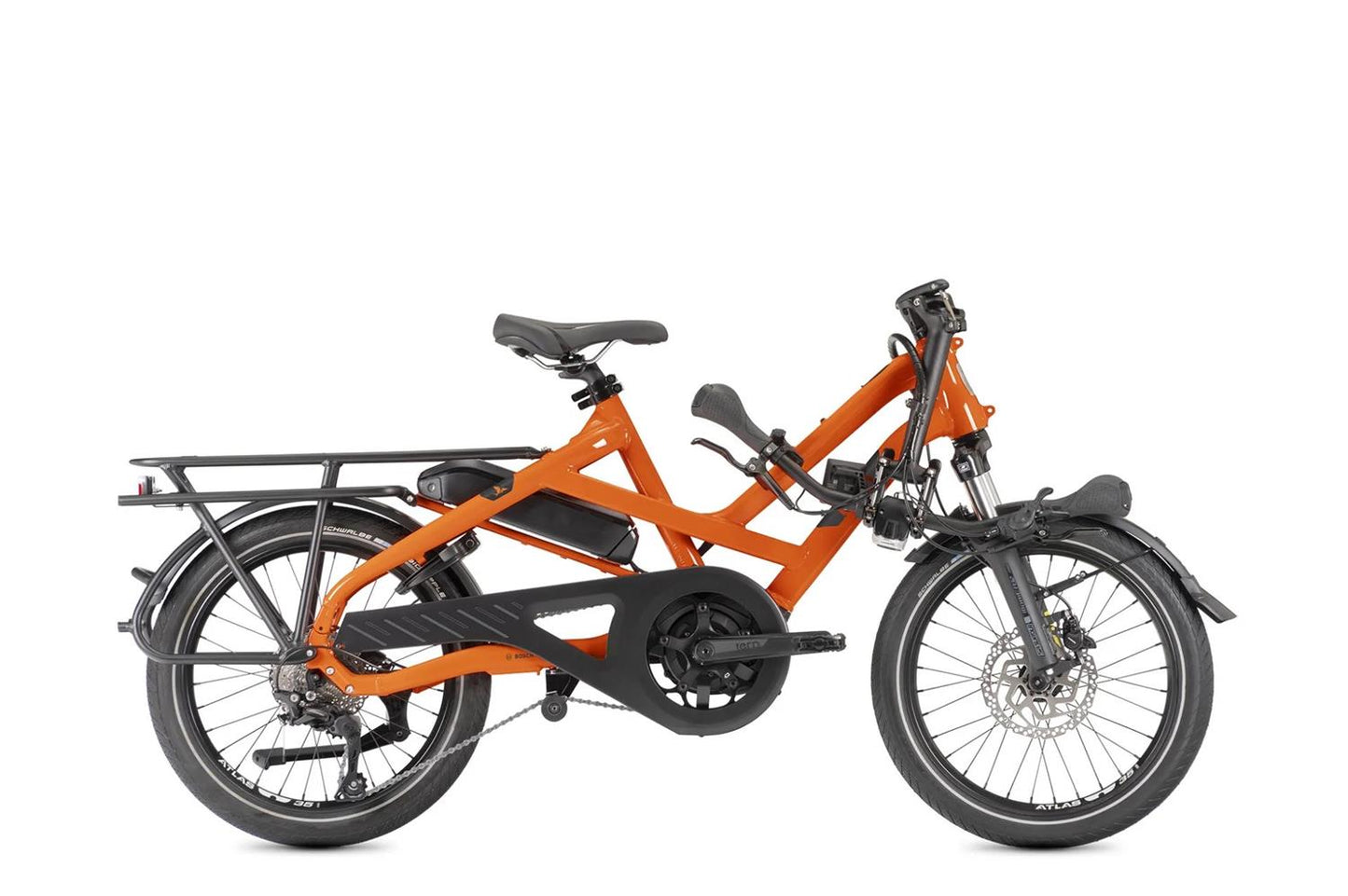

| folding time | 5 sec |
| grips/bar tape | Ergon |
| saddle | Tern Upright by Velo |

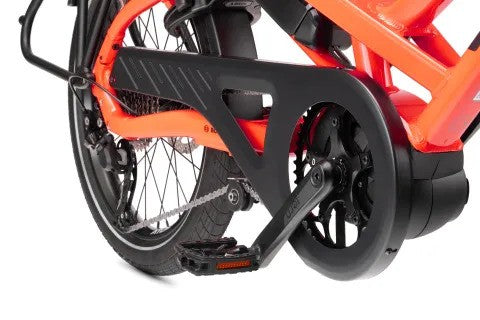

| chainguard | Tern Custom, full chain cover |
| suggested rider height | 150 - 195 cm |
| front wheel | Tern Atlas H, cargo wheel |
| rear wheel | Tern Atlas H, cargo wheel |
| front hub | Novatec, Thru-axle, sealed bearings |
| rims | Tern Atlas H, wide 35 mm |
| crankset | Tern HSD custom |
| handlepost | Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 290 mm |
| cassette/freewheel | Shimano 11-36T, 10 spd |
| charger | 240V, 4A (AU/NZ) |
| bell | Pitch Plus, brass |
| accessory | ABUS, keyed-alike with Bosch battery |
| tires | Schwalbe Big Apple, 55-406, puncture protection, Reflex |
| rear light | Herrmans H-Trace, for eBike |
| weight | 27.6 kg |
| gear inches | 2.36 - 7.72 m |
| folding size | 165 × 39.5 × 87 cm |
| distance (seatpost to handlebar) | 54.5 - 62.5 cm |
| distance (saddle to pedal) | 70 - 102.5 cm |
| max gross vehicle weight | 180 kg |
| front brake | Tektro, hydraulic disc, 180 mm rotor |
| rear brake | Tektro, hydraulic disc, 160 mm rotor |
| brake levers | Tektro, hydraulic disc |
| brake cable & housing | Tektro, hydraulic disc |
| rear hub | Novatec, sealed cartridge bearing, disc |
| shifter(s) | Shimano Deore, 1 x 10 spd, trigger |
| chain | KMC 10 spd, for eBike, EPT corrosion resistant coating |

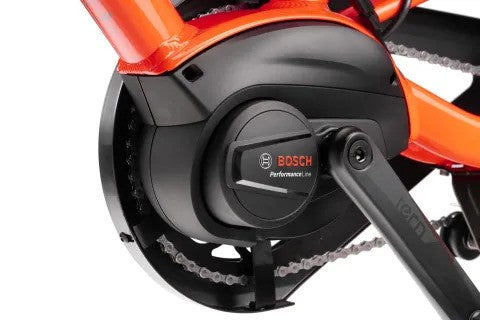

| motor | Bosch Performance, 340% Assist, 75 Nm Torque, max speed 32km/h |
| battery | Bosch PowerPack 545 |

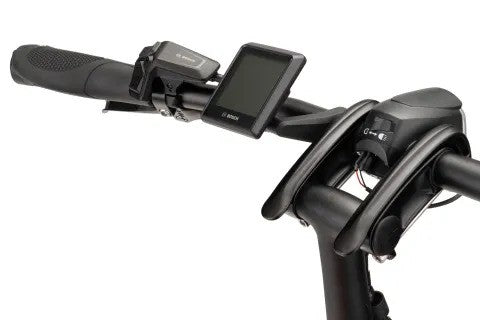

| display | Bosch Intuvia 100 w/ LED remote, 4 mode selectable, walk assist, connectivity with Bosch eBike Flow app, electronic bike lock |
| lock & alarm | Optional |

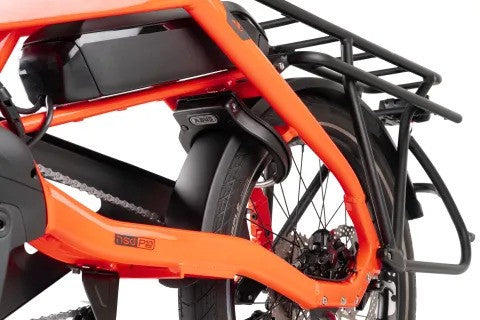

| rack(s) | Atlas H rack, Atlas Rack Mount, 6 point mounting, 80 kg capacity |
| range | 51-121km |
